Local-First Multimodal Assistant · Hybrid RAG · Vision Tools
PathFinder-Ship
A production-style local AI assistant that routes intent, answers from private documents, gates web evidence, controls browser camera tools, and runs YOLO-NAS object detection through one FastAPI-backed web experience.
Overview
PathFinder-Ship is not a simple chatbot wrapper. It is a local-first assistant architecture where every user message is classified, routed, grounded, executed, or safely rejected depending on intent confidence and context quality.
The project combines Passenger-Bot, an ONNX-deployed Flan-T5 Large model, with a MiniLM intent classifier, hybrid local retrieval, optional web evidence, browser camera control, object detection, local chat history, upload flows, voice mode, and Markdown export in one interface.
ONNX INT8 models run without remote inference
Passenger-Bot for chat, RAG, fallback, and tool narrations
Intent classifier for camera, detection, photo, and chat routes
ChromaDB vector search plus SQLite FTS5/BM25 scoring

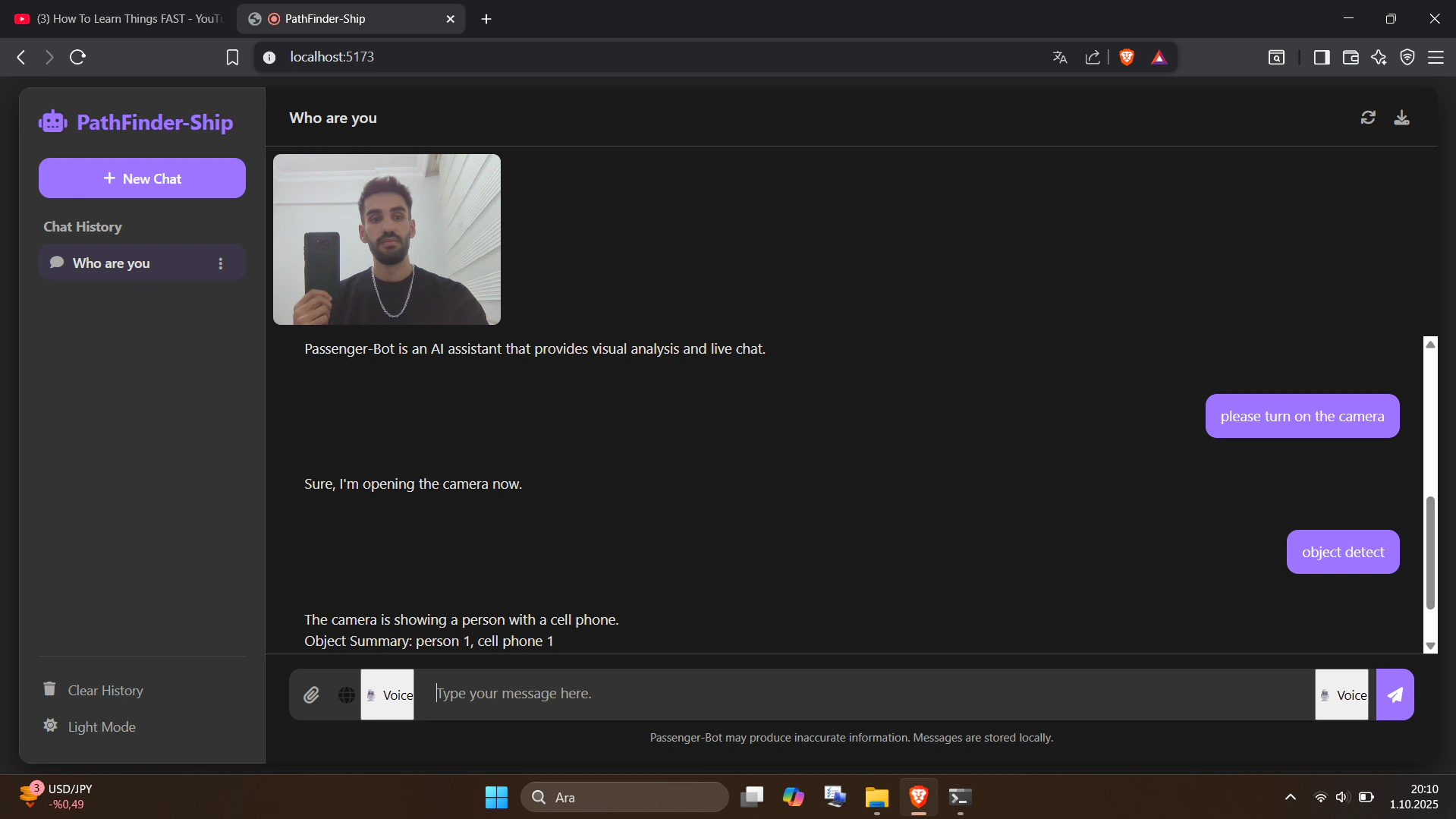

Demo Video
A working assistant loop, from intent to tool execution.
The demo shows the assistant switching between natural-language routing, camera actions, object detection, document QA, and export-oriented workflows.
Intent routing, browser camera access, YOLO-NAS detection, grounded answers, and chat export in one flow.
System Idea
One assistant, several specialized paths, no manual mode switching.
The user writes a natural-language request. The system decides whether to answer, retrieve, search, open the camera, capture, detect, or fall back.
Local PDFs, DOCX, and TXT files become a searchable personal corpus with semantic and keyword retrieval.
MiniLM recognizes commands like open camera, take photo, object detect, close camera, or normal chat.
YOLO-NAS can analyze live camera frames or uploaded images, save annotated results, and generate a careful summary.
Request Flow
The backend acts like a traffic controller for AI tools.
This request path is the main engineering story: route first, then choose the safest and most useful execution path.
Intent First
The frontend sends each message to /api/intent so the system can decide whether it is a tool command or a chat/RAG request.
Command Route
High-confidence camera or vision intents bypass normal chat and execute browser/backend actions immediately.
Knowledge Route
Non-command messages move through local RAG, web-augmented RAG, or model-only fallback depending on context strength.
Grounding Gate
Local retrieval score and web_strength decide whether to use local chunks, web chunks, both, or no external context.
Generated Answer
Passenger-Bot generates the final response from the selected prompt: chat, grounded RAG, fallback, or tool narration.
Architecture
A single FastAPI backend coordinates small, focused service layers instead of hiding everything behind one large chat endpoint. That makes the system easier to reason about: router, generator, retrieval, web search, vision, storage, email, and frontend each have clear responsibilities.
Chat sessions, camera access, file upload, localStorage history, Markdown rendering, web-search toggle, dark mode, and optional voice mode.
Single backend coordinates /api/intent, /api/chat, /api/rag, /api/photo, /api/detect, /api/upload, and /api/health.
MiniLM ONNX returns intent plus confidence for open_camera, close_camera, take_photo, object_detect, and chat decisions.
Flan-T5 Large ONNX uses different prompt templates for chat, strict RAG answers, weak-context fallback, and vision action narration.
Documents are cleaned, chunked, embedded with all-MiniLM-L6-v2, stored in ChromaDB, and indexed in SQLite FTS5 for BM25 search.
YOLO-NAS ONNX detects objects from browser camera frames or uploaded images, draws annotations, saves outputs, and can email results.
RAG & Web Gating
Grounding is scored before it is trusted.
The assistant does not blindly stuff every search result into the prompt. Local chunks and web chunks are scored first, then the backend chooses local-only, web-only, local plus web, or a model-only fallback when evidence is too weak.
PDF, DOCX, and TXT files are loaded, normalized, chunked with overlap, embedded, and indexed for semantic plus keyword retrieval.
Chroma similarities and BM25 scores are normalized into one relevance score using vector and keyword weights.
DuckDuckGo results are cleaned and chunked, then allowed into the answer only when web_strength passes the trust threshold.
Vision Pipeline
Camera commands become structured detection outputs.
The vision path is practical rather than decorative: it opens the browser camera, captures frames, runs detection, stores outputs, and returns both image and text.
Natural-language commands can open the browser camera, close it, capture a frame, or trigger detection without manual tool selection.
The backend preprocesses frames, applies detection and NMS, de-letterboxes boxes, and returns labels, confidence, summary, and image URL.
Photo and detection outputs are saved with a ring buffer so the last N images stay available, then optional SMTP delivery sends attachments.
Technology Roles
Backend API and orchestration layer
Local CPU inference for MiniLM, Flan-T5, and YOLO-NAS
Passenger-Bot response generation and tool narration
Intent classification and document embeddings
Persistent vector store for document chunks
BM25 keyword retrieval for hybrid search
Object detection on camera frames and uploads
SPA chat, camera, upload, voice, and local history
My Contribution
I designed and implemented the full assistant architecture: FastAPI routes, intent routing, ONNX model services, hybrid RAG indexing and search, web-search gating, YOLO-NAS detection, camera/photo/upload endpoints, storage and email utilities, frontend interaction flow, chat history, voice support, and Markdown export. The project demonstrates how local AI models can be connected to real user-facing tools without reducing the system to a simple chatbot.
Technology Stack
